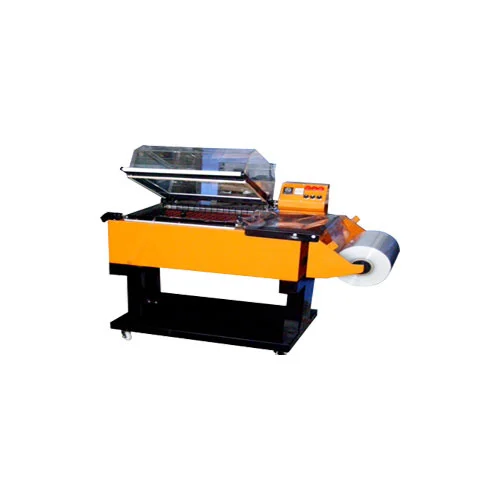

Shrink Chamber Machine ( 2 in 1 Shrink Packaging Machine)
|
Description
* It is available in Manual as well as Automatic option.
* Machine operates on 240 volt, A.C 5 amps socket.
* Very low consumption of power due to heavy duty transformer with silicon stampings.
* Silicon rubber used for long life operation life.
* High Speed Magnesia Heating Element for Powerfull operation of sealing.
* Timers are accurate and long life.
* Height adjusted with shrink m/c (In stage of Production only).
* Powder coated Body with castor wheel.
* Heavy duty aluminium roller and shock proof Plastic Handle.
* It is available in Manual as well as Automatic option.
* Machine operates on 240 volt, A.C 5 amps socket.
* Very low consumption of power due to heavy duty transformer with silicon stampings.
* Silicon rubber used for long life operation life.
* High Speed Magnesia Heating Element for Powerfull operation of sealing.
* Timers are accurate and long life.
* Height adjusted with shrink m/c (In stage of Production only).
* Powder coated Body with castor wheel.
* Heavy duty aluminium roller and shock proof Plastic Handle.
MAX. PRODUCT HIGHT : 200mm
SEALING AREA : 22" X 16" or as per customer requirement.
IMPULSE SEALING SYSTEM : BOTTAM BLADE
MAX TRIM ROLL IN WIDTH: 600 X Æ 250
WORKING HIGHT : 920mm
OUT PUT PRODUCT : 4 TO 8 PCS / MIN
POWER SUPPLY 230, 240V., 50HZ., 1-Phase
POWER CONSUMPTION 3.5 KW
MACHINE DIMENSION 1250mm(L) x 750mm(W)
MACHINE WEIGHT 105 KGS
SEALING AREA : 22" X 16" or as per customer requirement.
IMPULSE SEALING SYSTEM : BOTTAM BLADE
MAX TRIM ROLL IN WIDTH: 600 X Æ 250
WORKING HIGHT : 920mm
OUT PUT PRODUCT : 4 TO 8 PCS / MIN
POWER SUPPLY 230, 240V., 50HZ., 1-Phase
POWER CONSUMPTION 3.5 KW
MACHINE DIMENSION 1250mm(L) x 750mm(W)
MACHINE WEIGHT 105 KGS
